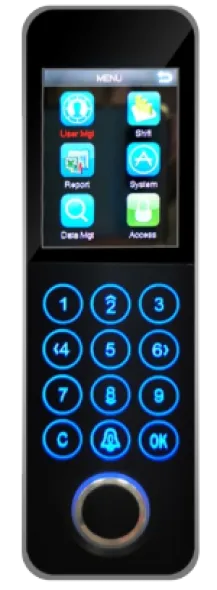

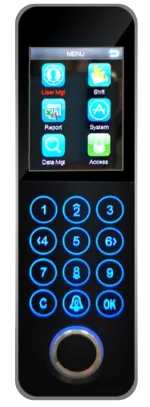

TASOFT AKSES KONTROL SIDIK JARI TAHAN AIR - TAS-FP59WP

Home /

Produk /

Time Attendance & Access Control /

Tasoft /

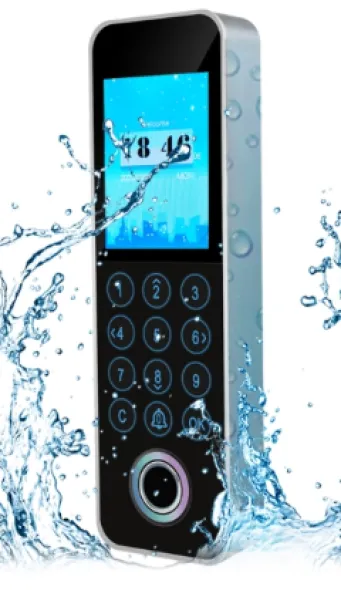

TAS-FP59WP merupakan terminal akses kontrol fingerprint dengan desain ramping dan tahan air IP65 (opsional IP67). Dimensi 140x42x18mm cocok untuk pintu dengan frame tipis. Material case metal dengan keypad sentuh.

Fitur Hardware
• Display: 2.0-inch TFT color screen
• Input: Touch keyboard, T9 input
• Sensor: Capacitive fingerprint (semi-conductor scanner), RFID card support
• Communication: TCP/IP (LAN), USB disk, WG26/34, RS-485, RS-232
• Power: DC12V 1A
• Operating Temperature: 0°C-45°C
Fitur Akses Kontrol
• Working Mode: Online/Offline
• Algorithm: THbio 3.0
• Verification Method: Fingerprint, Card, PIN
• Time Zone: 8 day, 8 week, 5 lock combination, multiple people verification
• Anti-passback: A/B doors
• Fitur lain: Anti-tamper, Door bell, Door sensor, Exit button, Lock relay (1 set), Wiegand In/Out, Alarm (2 set), Interlock, Indoor/Outdoor

SPECIFICATION TABLE TAS-FP59WP
Category	Item	Specification
Basic	Working Mode	Online / Offline
	Algorithm	THbio_3.0
	Verification Method	Fingerprint, Card, PIN
	Fingerprint Capacity	3,000 / 5,000 (Optional)
	Card Capacity	3,000 / 5,000 (Optional)
	PIN Capacity	3,000 / 5,000 (Optional)
	Record Capacity	170,000 / 250,000 (Optional)
	Verification Speed	≤ 1.0 second
	Verification Mode	1:N, 1:1
	FRR	< 0.01%
	FAR	< 0.0001%
	Display	2.0-inch TFT Color Screen
	Input	Touch Keyboard, T9 Input
	Language	English, Arabic, etc.
	Voice	English, Arabic, etc.
Communication	Interface	TCP/IP (LAN), USB Disk, Wiegand 26/34, RS-485, RS-232
Professional Access Control Function	Time Zone	8 Day Time Zone, 8 Week Time Zone, 5 Lock Combination, Multi-user Verification
	Anti-Tamper	Yes
	Door Bell	Yes
	Door Sensor	Yes
	Exit Button	Yes
	Lock Signal	1 Set Relay Output
	Wiegand Signal	Wiegand In / Out
	Alarm Signal	2 Set Signals (Anti-tamper, Threaten, Door Open, Force)
	Anti Pass Back	Indoor / Outdoor
	Interlock	A / B Doors
	Fire Alarm	Yes
Others	Dimension	140 × 42 × 18 mm
	Power Supply	DC 12V
