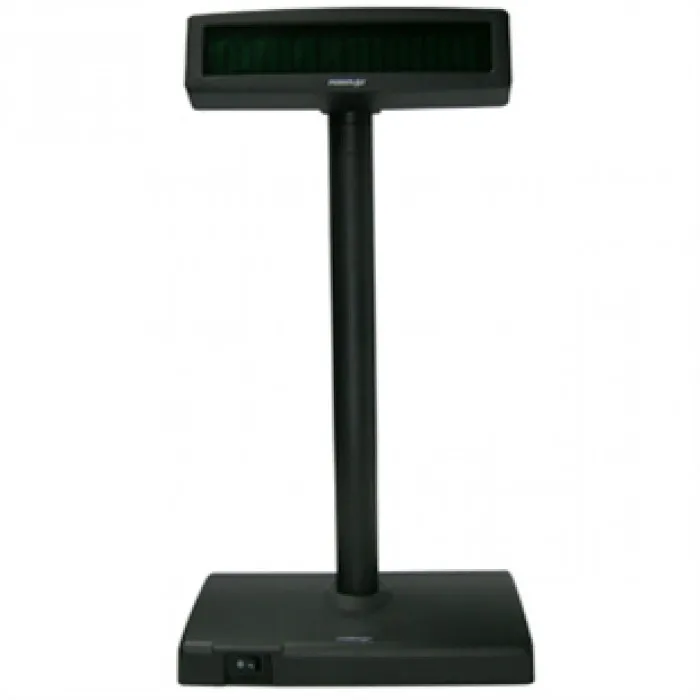

POSIFLEX CUSTOMER POLE DISPLAY PD-2600

Home /

Produk /

Feature
• Highly bright VFD with green or blue filter
• Two-line display with 20 characters per line
• Adequate character size per digit for easy viewing : 9.03 x 5.25 mm
• 15°, 30° and 45° adjustable view angles vertically
• Rotated display frame 270° horizontally
• Various command emulation modes selection by DIP switch
• 12 international character sets support
• Euro dollar sign supported in USA / European font
• UPOS 1.8 support and WEPOS certified
• Interface : serial (RS232) or USB port Dimension : 222 mm (W) x 112 mm (D) x 410 mm (H)
• Weight: 0.83 Kg
• Color : Ivory white or black

Specification
Display Method	VFD (Vacuum Fluorescent Display) Display Capacity
Display Color	Wavelength = 550 nm w/ Green filter
Character Size (H mm x W mm)	9.03 x 5.25
Emulation Modes	6 modes (Futaba, Noritake, Aedex, ADM, UTC, Epson)
International Character Set	12 sets of 12 characters each (USA, France, Germany, UK, Denmark I, Sweden, Italy, Spain, Japan, Norway, Denmark II, Croatia)
Character Code Page	Total 12 code pages (PC437, Katakana, PC850, PC860, PC863, PC865, Russia, Albic, PC858, PC437G, Win1257, Win1253)
Interface	Serial (RS232C) or USB Housing Material
Display Head Size (W x H x D)	196.6 mm x 58 mm x 28.2 mm
Total Height374	385 mm (above HT)
Display Tilt Angle	15°, 30°, 45° in 3 steps
Display Swivel Range	270°
Power Supply	5 V DC in COM or USB connector Operating Temperature
Storage temperature	-20 to +70 (°C)
Relative humidity	Operating: 20 % to 85 % (non-condensing) Non-Operating: 5 % to 90 % (non-condensing)
